in Part 2 for the Docker registry cache we extend the features for ghcr.io (Github Container Registry) and quay.io (RedHat Container Registry)
quick and dirty way
to avoid tinkering with fully blown Container registries like:
we only want to proxy the requests and cache the artifacts for consecutive pulls.
To achieve this we will leverage the same Container image from Part 1, but will point it to the other registries.
Since Part 1 i switched the storage backend to a S3 bucket hosted with my CEPH Cluster via Rados-GW.
GHCR Cache Configuration
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
|
# ghcr.yml
version: 0.1
log:
level: info
fields:
service: registry
environment: development
storage:
cache:
blobdescriptor: inmemory
# if you don't want to use s3 uncomment this line and add a volume mount to the container for this path
# filesystem:
# rootdirectory: /var/lib/registry-cache
# comment the whole section if filesystem is used
s3:
# accesskey: defined through env
# secretkey: defined through env
region: default
regionendpoint: <your S3 endpoint>
bucket: registry
delete:
enabled: true
maintenance:
uploadpurging:
enabled: true
age: 168h
interval: 24h
dryrun: false
http:
addr: :5000
secret: asecretforlocaldevelopment
debug:
addr: localhost:5001
headers:
X-Content-Type-Options: [nosniff]
http2:
disabled: false
proxy:
remoteurl: https://ghcr.io
health:
storagedriver:
enabled: true
interval: 10s
threshold: 3
|
QUAY Cache Configuration
for quay.io the Configuration is identical to GHCR except proxy remoteurl is set for quay.io
1
2
3
4
5
|
# quay.yml
...
proxy:
remoteurl: https://quay.io
...
|
combine all the things
env file
we will use an .env file to inject secrets in the container.
1
2
3
|
# .registry.env
REGISTRY_STORAGE_S3_ACCESSKEY=<your S3 Key>
REGISTRY_STORAGE_S3_SECRETKEY=<your S3 Secret>
|
Folder Structure
the Updated folder Structure will look like this
1
2
3
4
5
6
7
|
registry
├── .registry.env
├── config
│ ├── config.yml
│ ├── ghcr.yml
│ └── quay.yml
└── docker-compose.yml
|
Docker Compose
as described in Part 1, the Traefik configuration will expose the Servers with their Service Name and serve them over https with a LE wildcard Certificate.
This will lead to the following FQDNs.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
|
---
version: "3"
services:
###################### Docker Hub Registry ######################
registry:
container_name: registry
image: registry:latest
env_file:
- .registry.env
volumes:
- {{ storage-path }}registry/config/config.yml:/etc/docker/registry/config.yml
# - {{ storage-path }}registry/cache:/var/lib/registry-cache
restart: unless-stopped
labels:
traefik.enable: true
traefik.http.routers.registry.entryPoints: https
traefik.http.services.registry.loadbalancer.server.port: 5000
networks:
- proxy
###################### Github Container Registry ######################
registry-ghcr:
container_name: registry-ghcr
image: registry:latest
env_file:
- .registry.env
volumes:
- {{ storage-path }}registry/config/ghcr.yml:/etc/docker/registry/config.yml
restart: unless-stopped
labels:
traefik.enable: true
traefik.http.routers.registry-ghcr.entryPoints: https
traefik.http.services.registry-ghcr.loadbalancer.server.port: 5000
networks:
- proxy
###################### Quay Container Registry ######################
registry-quay:
container_name: registry-quay
image: registry:latest
env_file:
- .registry.env
volumes:
- {{ storage-path }}registry/config/quay.yml:/etc/docker/registry/config.yml
restart: unless-stopped
labels:
traefik.enable: true
traefik.http.routers.registry-quay.entryPoints: https
traefik.http.services.registry-quay.loadbalancer.server.port: 5000
networks:
- proxy
networks:
proxy: # rename this to your custom docker network.
driver: bridge
external: true
|
put it to the test
A first pull of an Image should be dependent on your ISP connection and may be slower. Consecutive pulls of the same container even on other machines should be faster but may also depend on your local storage and network.
The pulls can be done either from docker or even podman. we will measure the time for the first and a second download from the same and a 3rd from another machine afterwards.
we will use the quay.io Prometheus image for the test link
initial Pull
The initial pull of the image took 12seconds

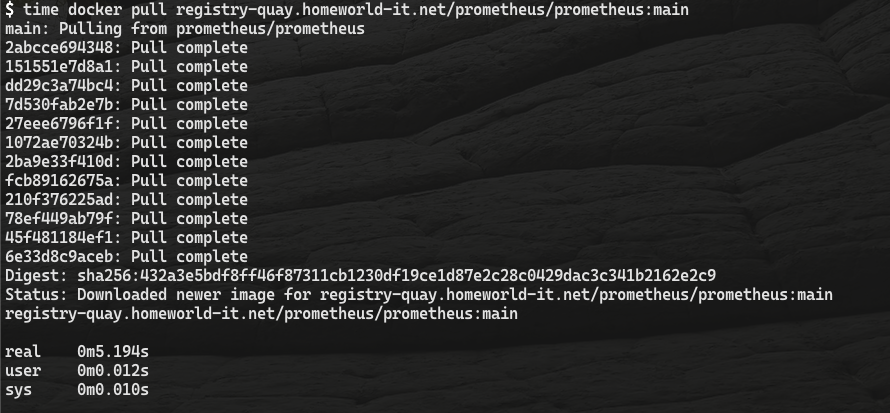

second Pull
after deleting the image the second pull took only 5 seconds.

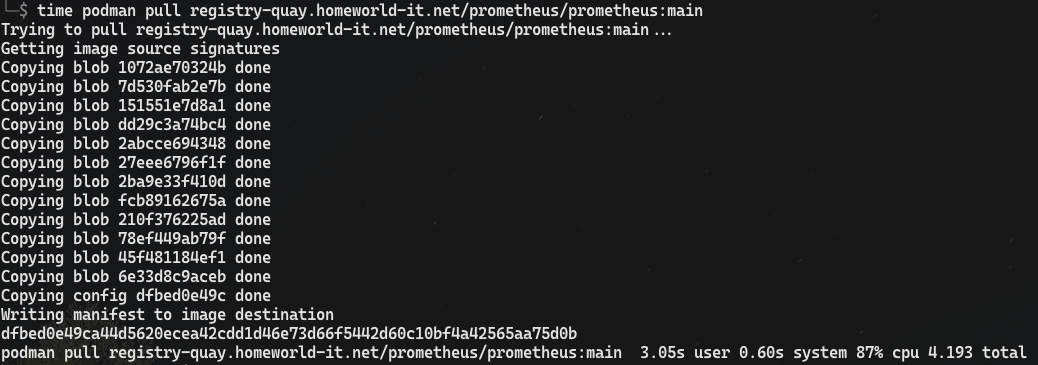

third Pull - other machine
pulling it with Podman from a different machine took only 4 seconds
